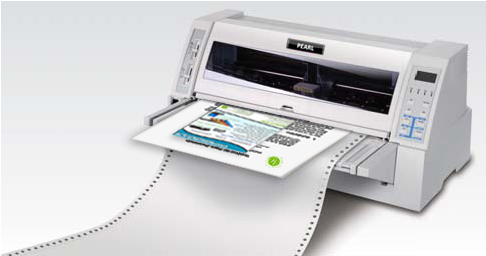

Pearl P8800
High Speed & Versatile 24-Pin Wide Carriage Flatbed Impact Printer for handling wide range of paper size & thickness.
Pearl P8800 is of high speed & durability to handle the relentless daily printing demands of everywhere from banks to freight forwarders. It can handle wide range of paper size & thickness to meet the needs of all business sectors.
?Highlights:
- Fast printing speed of up to 400 characters per second
- Better connectivity with USB 2.0 & Standard Parallel, Optional Ethernet & Serial Interfaces
- Optimum efficiency with 7-ply forms printout (Original + 6 Copies)
- Trustworthy printhead (500 million strokes)
- Choice of 9 built-in bar code formats for maximum versatility
Specification:
?
| Print type | 24-pin impact dot matrix |
| Print direction | Bi-directional with logic seeking |
| Print width | 136 Columns (10CPI) / 345.44mm |
| Print speed | Super high speed 400 CPS High speed 300 CPS Normal 200 CPS High density 150 CPS |
| Print head | Diameter of wire: 0.22mm, Life: 500 million strokes/wire |
| Resolution | 360?360 DPI (Maximum) |
| Character sets | 17 international character sets U.S.A, France, Germany, U.K, Denmark1, Sweden, Italy, Spain1, Japan, Norway, Denmark2, Spain2, Latin Am, Korea, Legal, Netherlands, Turkey |
| Fonts | Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-A, OCR-B |
| Bar code | EAN-13, EAN-8, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 128 B, Code 128 C,NW-7 |
| Character pitch | 10CPI, 12CPI, 15CPI, proportional |
| Line space | 1/6 inch, 1/8 inch, 1/360 inch |
| Emulation | EPSON ESC/PK2, OKI5530SC, IBM 2391 |
|
Interface
|
USB 2.0 ( Full-Speed ) interface, Bi-directional parallel interface (IEEE-1284 nibble mode) RS-232C serial interface, 10/100 Base-T Ethernet interface |
| Input Buffer | 132KB |
| Ribbon Life | > 20 million characters (draft mode) |
| Noise | <58dB(A)(ISO7779 standard) |
|
Paper feed type
|
? front in, front out
? |
|
Paper specification
?
? |
? ? Width: 127~430mm,
? |
| Max paper thickness | 2.0mm |
| Copy capability | Original+6 copies |
| Automatic function | Automatic gap adjustment, Automatic document alignment, Automatic paper edge detection |
| Special function | LCD display |
| Dimension | 635mm(W) ? 335mm(D) ? 294mm(H) |
| Weight | Approx. 22Kg |
|
Environmental conditions
? |
? Temperature: 5~40oC,
|
| Power requirements | Rated voltage: 198~242V or 100~110V, Rated frequency range: 50~60Hz |
| Safety marks | GB4943 / EN60950 |
