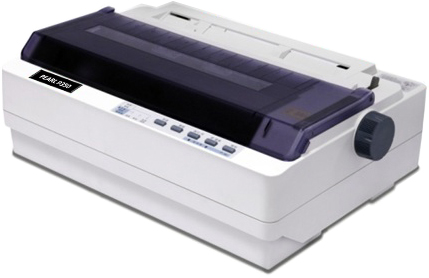

High Speed & Compact 24-pin Narrow Carriage Impact Printer
for medium & large print volume
Highlights:
• Fast printing speed of up to 400 characters per second
• Greater connectivity with Standard Parallel & USB 2.0 Interfaces
• Optional Serial, Ethernet & additional USB Interfaces
• Achieve optimum efficiency with 5 part forms printout (Original + 4 copies)
• High Reliability at mean time between failure of 20000 hours
• Trustworthy reliable printhead (500 million strokes)
• Choice of 9 built-in bar code formats for maximum versatility
Specification:
Print type |
24-pin impact dot matrix |
Print direction | Bi-directional with logic seeking |
Print width | 80 Columns (10CPI)/203.2mm |
Print speed Super high speed High speed Normal |
ASCII(10cpi) 400 cps 300 cps 150 cps |
Print head | Diameter of wire: 0.22mm Life: 500 million strokes/wire |
Resolution | 360 x 360 dpi (Maximum) |
Character sets ASCII |
17 international character sets |
Fonts | Draft, Roman, Sans Serif, Courier, Prestige, Script, OCR-A, OCR-B, Orator |
Bar code | EAN-13, EAN-8, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Code 39, Code 128B, Code 128C, NW-7 |
Character pitch ASCII |
10cpi, 12cpi, 15cpi, proportional |
Line space | 1/6 inch, 1/8 inch, programmable in 1/360 inch increments |
Emulation | EPSON ESC/PK2, IBM 2391 |
Interface Standard
Options |
Bi-directional parallel interface (IEEE- Second USB 2.0 (Full-Speed) interface, |
Buffer Memory | 132KB |
Ribbon Model Life |
P120 |
Noise | <53dB(A) (ISO7779 standard) |
Paper feed type Cut sheet Continuous paper |
Feed paper by friction paper rear in, front out |
Paper specification Cut sheet Continuous paper |
Width: 48~261mm Width: 56~267mm |
Max paper thickness |
0.52mm |
Copy | Original + 4 copies |
Automatic function Options |
Automatic paper edge detection; Black mark detection |
Compress set | Compressed printing for character and graphics |
Special function | Automatic Pin Break Compensation; Automatic Pin Alternation; Automatic Emulation Match; Online Parameter Setting |
Dimension | 384mm(W) x 280mm(D) x 139mm(H) |
Weight | Approx. 6Kg |
Environmental conditions
Storage |
Temperature: 5~40oC Humidity: 40%RH~90RH(No condensation) Temperature:-40~55oC |
Power requirements |
Rated voltage 176~242V; Rated frequency range 50~60Hz |
MTBF | >20,000 hour (IEC 605.7 standard) |
Safety marks | GB 4943/IE60950/VL 60950 |
